321 Stainless Steel Bar Rod manufacture

Grades 321 and 347 are the basic austenitic 18/8 steel (Grade 304) stabilized by Titanium (321) or Niobium (347) additions. These grades are used because they are not sensitive to intergranular corrosion after heating within the carbide precipitation range of 425-850 °C. Grade 321 is the grade of choice for applications in the temperature range of up to about 900 °C, combining high strength, resistance to scaling and phase stability with resistance to subsequent aqueous corrosion.

321 Stainless Steel Bar Rod Price in China ,Manufacturer of 321 Stainless Steel Bar Rod

A limitation with 321 is that titanium does not transfer well across a high-temperature arc, so it is not recommended as a welding consumable. In this case grade 347 is preferred - the niobium performs the same carbide stabilization task but can be transferred across a welding arc. Grade 347 is, therefore, the standard consumable for welding 321. Grade 347 is only occasionally used as parent plate material.

Grade 321H is a modification of 321 with higher carbon content, to provide improved high-temperature strength.

Click to Request Information >

Equivalent Material of 321 Stainless Steel Bar Rod

Grade UNS No. Old British Euronorm China GB Japanese JIS
BS EN No. Name
321 S32100 321S31 58B 1.4541 X6CrNiTi18-10  X10CrNiTi189 SUS 321

Standard Specification Of ASTM A240 Type 321 Stainless Steel Bar Rod

Specifications ASTM A276
Diameter 3、5、6、7、8、9、10、12、15、18、20、25、30、35、40、50、100、200etc
Length 2000mm, 2500mm, 3000mm,3500mm, 4000mm 5000mm 6000mm 10000mm 12000mm etc
Surface Black 、 bright、 pickling 、etc
Finish Hot rolled plate (HR), Cold rolled sheet (CR),
Form Rod, Round, Channel Bar, Rings, Round Rod, Triangle, Hollow, Rectangle, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.

321 Stainless Steel Bar Rod  Composition and Mechanical Characteristics

Grade C Mn Si P S Cr Mo Ni N
321 Min.
Max.
/
0.08
/
2.00
/
0.75
/
0.045
/
0.030
17.00
19.50
/ 9.00
12.00
0.1
Grade Tensile Strength
(MPa)
Yield Strength
0.2% Proof (MPa)
Elongation
(% in 50mm)
Hardness
Rockwell B
(HR B)
Brinell
(HB)
321 515 205 40 95 217

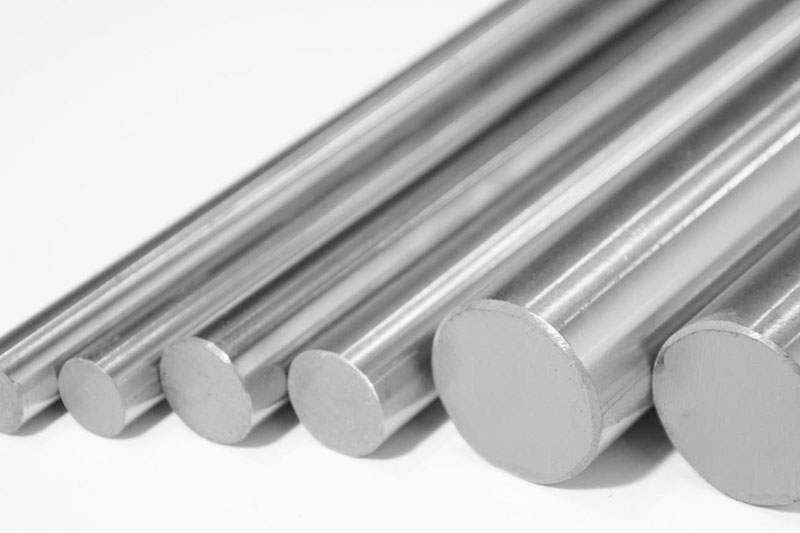

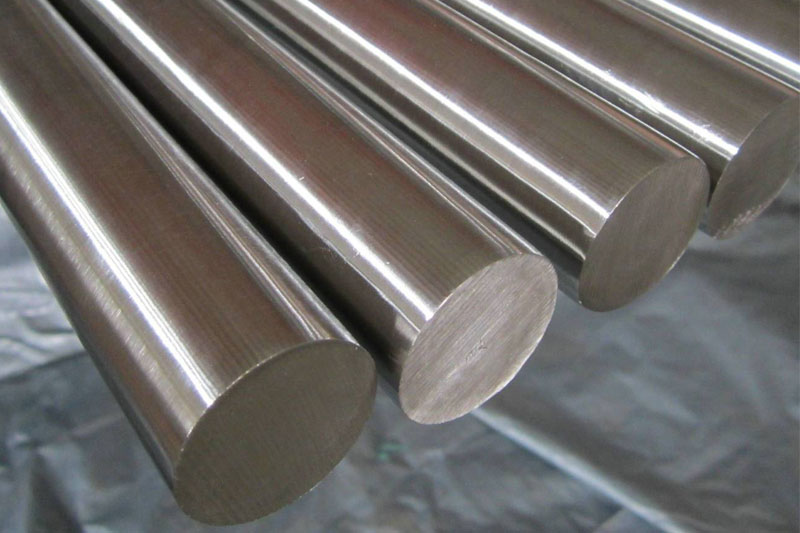

Common Types Of 321 Stainless Steel Bar Rod

  • 321 Stainless Steel Bar Rod

  • 321 Stainless Steel Bar Rod

  • 321 Stainless Steel Bar Rod

Dimensions Standard,weight chart and size schedules of 321 Stainless Steel Bar Rod

SS 321 rod Diameter Weight chart per meter SS 321 rod Diameter Weight chart per meter
3mm 0.06 Kg 1/8'' 0.06 kg
4mm 0.10 Kg 3/16'' 0.14 kg
5mm 0.16 Kg 1/4'' 0.25 kg
6mm 0.22 Kg 5/16'' 0.39 kg
7mm 0.30 Kg 3/8'' 0.56 kg
8mm 0.40 Kg 7/16'' 0.77 kg
10mm 0.62 Kg 1/2'' 1.00 kg
12mm 0.89 Kg 9/16'' 1.22 kg
14mm 1.22 Kg 5/8'' 1.56 kg
15mm 1.40 Kg 11/16'' 1.89 kg
16mm 1.59 Kg 3/4'' 2.25 kg
18mm 2.01 Kg 7/8'' 3.07 kg
20mm 2.48 Kg 1'' 4.03 kg
22mm 3.00 Kg
24mm 3.57 Kg
25mm 3.88 Kg

Price list

321 Stainless Steel Bar Rod Price List 321 Stainless Steel Bar Rod FOB Shanghai Per Unit (USD)
321 stainless steel black rod $1500.00-$2000.00
321 stainless steel bright rod $1800.00-$2300.00
321  stainless steel pickling rod $1500.00-$2000.00
